Flexible Hose Inquiry Form
Please contact us via email, phone or use the inquiry form and web form.
WEB Form
ISO KF Flanges
![ISO KFフランジタイプ お問い合わせ ミラプロ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/f-h_inquiry_img01.jpg)
![ミラプロ 製品 ISO KFフランジタイプ お問い合わせ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/icon_mail.png)
ISO MF Flanges
![ISO KFフランジタイプ お問い合わせ ミラプロ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/f-h_inquiry_img02.jpg)
![ミラプロ 製品 SO KFフランジタイプ お問い合わせ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/icon_mail.png)
JIS Flanges
![JISフランジタイプ お問い合わせ ミラプロ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/f-h_inquiry_img03.jpg)
![ミラプロ 製品 JISフランジタイプ お問い合わせ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/icon_mail.png)
CF Flanges
![ISO CFフランジタイプ お問い合わせ ミラプロ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/f-h_inquiry_img04.jpg)
![ミラプロ 製品 CFフランジタイプ お問い合わせ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/icon_mail.png)
Tube end
![チューブエンド お問い合わせ ミラプロ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/f-h_inquiry_img05.jpg)
![ミラプロ 製品 チューブエンド お問い合わせ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/icon_mail.png)
MP processed Flexible hose
![MP処理ミニフレキ お問い合わせ ミラプロ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/f-h_inquiry_img06.jpg)
![ミラプロ 製品 MP処理ミニフレキ お問い合わせ](http://www.mirapro.co.jp/en/wp-content/uploads/2018/01/icon_mail.png)
The Necessary information
Configuration
Size | Nominal diameter Inside・Outside diameter ※Please select either of them |
---|---|

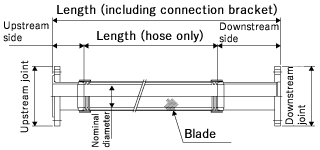

Length | Including flanges, Hose only ※Please select either of them |
Joint type (Top・Bottom) |
Flange Type(ISO KF、JIS、CF), Tube end ※Other than that please remark in comment box For additional work, please attach drawings. |
Configuration
For flexible hose with blade, please make a comment.
MTC Series(CF Flange type): Blade for protection only
Inner surface polishing (MP Processing)
Please select Inner surface polishing, if needed.
MP allowable size(Nominal diameter) | 5A~100A |
---|---|
MP processing maximum length | 2,000mm |
Condition in use
Pressure condition (Inside, Outside)
Name of the fluid to use
Maximum Temperature (Room / Max)
If it moves during the operation, please make a comment.
Material
We also accept materials other than our standard materials. Please specify the material of your choice.
Name of the fluid to use
Maximum Temperature (Room / Max)
If it moves during the operation, please make a comment.
Standard material list
CODE | HOSE | Joint | Flange |
---|---|---|---|
MTK(ISO KF Flange) | SUS316L | ― | SUS316 |
MTJ(JIS Flange) | SUS304 | SUS304 | |
MTC(CF Flange) | SUS304 | SUS316L | |
MTT(Tube end small diameter) | SUS316L | ― |
Inspection
He leak test(please specify leak rate)
Pressure test(water・N2)
※Please contact us about pressure test details
Delivery date・Qty
Please specify quantity and requested delivery date.
Purpose of use
Please specify the purpose of use
